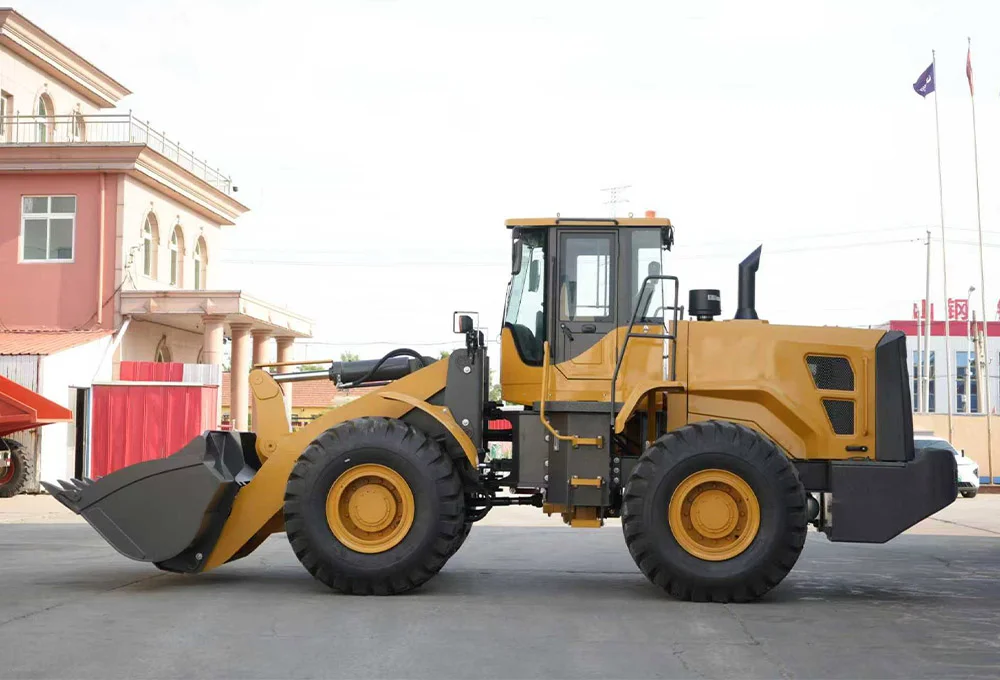

FD50

Power System｜Weichai WD10 Proven Power, Heavy Duty & Durable

• Equipped with Weichai WD10 six cylinder mechanical pump engine, rated power 162kW@2200r/min. Built on mature Steyr technology, it delivers high torque at low speed. It provides abundant power for shoveling loading and climbing, and offers strong performance under harsh site working conditions.
• Adopting mechanical injection pump design, it has high tolerance for diesel fuel quality. Well suited for overseas markets and job sites with inconsistent fuel quality, featuring low failure rate.
• Large global population in service. Spare parts are widely available worldwide. Simple and convenient maintenance, low after service cost and long overhaul cycle, delivering outstanding cost performance.

Transmission Assembly ｜ YJ375 Torque Converter + Constant Mesh Spur Gear Power Shift Gearbox, Rugged & Reliable

• YJ375 hydraulic torque converter, a well proven matching component for 5 ton loaders. Wide high efficiency working range, automatically adapts to load variation. No power stall during digging and shoveling, stable power transmission and strong shock resistance. Its reliability has been fully verified by market applications.
• Constant mesh spur gear power shift gearbox ensures smooth shifting and easy operation. The fixed axis spur gear structure is simple yet robust with excellent shock resistance. Easy to disassemble, repair and service on remote job sites, with highly universal spare parts.
• Well calibrated matching of power assemblies generates ample tractive force for the whole machine. Stable continuous heavy duty operation in earth rock works and aggregate yards.

Luxury cab

Fadeel luxury cab with full skeleton structure can provide large space and safety protect to operator.

Visibility is excellent to both front and rear of the cabin, the front arc wind-shield and large rear mirror are equipped to increase operator's vision. Rear camera is an option to machine which can reduce risk when operation. Sun visor is standard to protect operator's eyes.

Micro-pressurized Sealing Design

Micro-pressurized design makes cab has better sealing feature, also the temperature can be kept stable no matter the outside weather when using warm-fan or air conditioner. Improved sealing also decreases the internal noise dramatically which makes operator comfortable and reduce fatigue.

Comfortable Seat

The mechanical suspension seat with excellent vibration absorption feature can better adapt to operator's weight which can reduce operation fatigue dramatically. Adjustable headrest could increase neck and head safety to operator.

Comfortable operation

The single joystick can control the hydraulic system easily with very small effort, that will reduce the operator's fatigue dramatically when operating machine.

Equipped with advanced front panel which has various gauge,the opera-   tor can monitor machine's working conditions in time.Steering column  can be adjusted back and forth according to the operator's demand.

Vibration and Noise Isolation

Unique vibration absorption design can improve the operation and protect the main components dramatically, that can reduce operator's fatigue and prolong uptime of machine. Rear axle can oscillate 12 degrees to increase passage capacity in rough job site.

The internal wall of engine hood and the cab floor are stuck by sound absorbing material in order to reduce the noise of machine to improve operator's comfort.

Engine Access

The “side-open” engine hood is easily to open and offers large space for operator when maintain the machine, the Three-points design of foot-plate and hand-holders is very convenient for operator to climb the machines with safety. The fuel filter and oil filters are located in one side of engine to make them easy and quick maintenance.

Fuel and hydraulic oil level indicators are placed in convenient places on the tanks for easy check.

Convenient Lubrication

All butter filling positions are leaded to the convenient places on machine in order to easy lubrication. Operator can stand on the ground when do the routine maintenance. Centralization lubrication is optional to convenient lubrication if customer has special demand.

Instrument Panel

Advanced instrument panel integrates gauges which can help operator monitor the running situations of machines, it is very convenient to help technician to maintain and repair machine.

Dry brake axles

Equipped with dry brake axles that the brake pads are exposed outside of axles,this design makes brakes pads are easy to be replaced with low cost.Brake pipes in front of axles are protected by steel plate to avoid damage which may be caused by materials dropped from bucket.

Trustworthy In Task

• Trustworthy quality: As a responsive enterprise, we believe in heart that quality is the most important thing to create profit to customer. Produce qualified machine with great performance is the priority of us.
• Trustworthy service: "Customer first with integrity" s lodged in FADEEL concepts and behaviors. With fast service, adequate spare parts and global network, we "ProCare" dedicates to keep machine downtime in minimum in order to benefit customer with lower using cost.
• Trustworthy team: FADEEL see customer as trustworthy partner to do the business, we always listen from customers to create innovated approaches to reach customer's demand with teamwork.

Optimal working device

The proven Z-bar linkage with series high-performance Buckets offer excellent penetration into the pile, high breakout forces,good roll back angles and faster dig times. The results are improved production capabilities,these also help to  enable a sustainable solution for your business.The machine's working cycle time is less than 9.8s, that ensures machine can load more materials in short time. Optimal designed 3m3 standard bucket can load more material and avoid spilling.
