This machine is equipped with a 4102 turbocharged 4-cylinder engine with a rated power of 78kW. It delivers strong turbocharged power output and ample low-speed torque reserve, maintaining stable power during heavy-load startup and climbing operations.

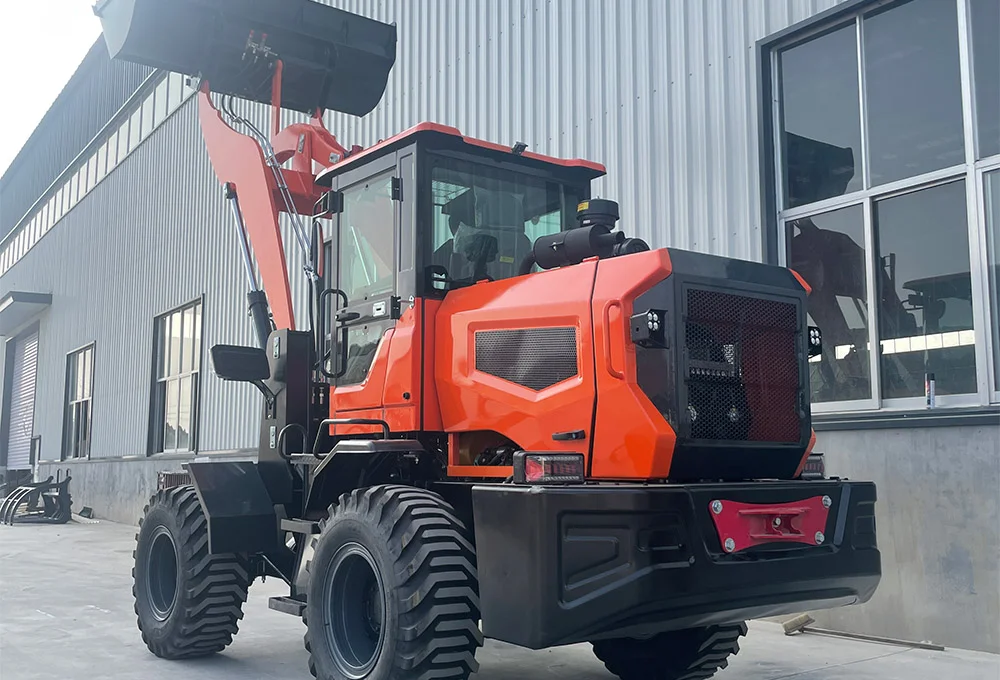

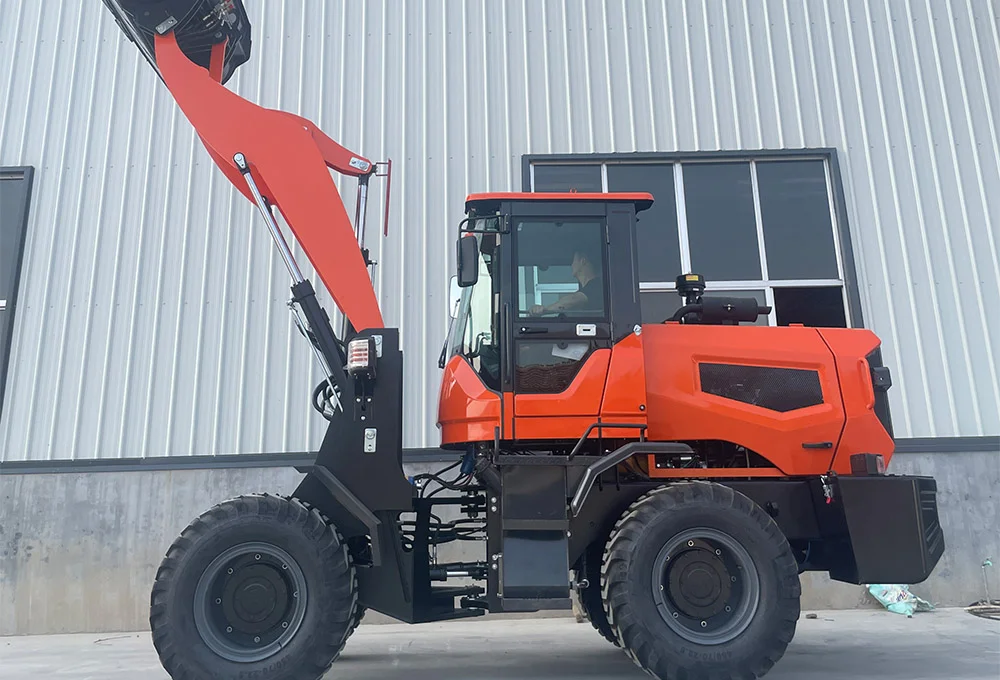

FD20
FD20
Rated Load: 2000KG
Machine Weight: 4100KG
Bucket Capacity: 1M³
Dump Height: 3500MM
Overall Dimensions: 5800*2000*2850 (MM)
Product Description
Core Configuration
This machine is equipped with a 4102 turbocharged 4-cylinder engine with a rated power of 78kW. It delivers strong turbocharged power output and ample low-speed torque reserve, maintaining stable power during heavy-load startup and climbing operations.
Matched with a 265 split transmission and wheel-reduction drive axle, it features strong impact resistance and abundant heavy-load torque for reliable performance on bumpy roads.
It adopts an air brake system with sensitive braking response to ensure operational safety.
Both the fuel tank and hydraulic tank have a large 80L capacity, reducing frequent refueling and fluid replenishment to support long continuous operation.
Product Advantages
Compact body and small footprint with flexible steering, enabling smooth travel on uneven construction sites, slopes and rural dirt roads.
The full cycle of shoveling, loading and unloading is smooth and efficient, shortening each working cycle and boosting productivity.
Stable and reliable hydraulic system with low failure rate; highly universal spare parts for low maintenance cost in later use.
Mechanical pilot control with lightweight, responsive joysticks, easy to master and friendly for new operators.
Fully enclosed cab effectively blocks construction dust and protects operators from sun and rain. Optional heating and air conditioning can be installed for a more comfortable working environment.
Equipped with a suspended shock-absorbing seat that fits the human body, absorbing vibrations to greatly relieve operator fatigue and reduce work intensity.
Core Selling Points
High power output, strong power and sufficient low-speed torque, robust and durable structure.
Excellent loading capacity and working efficiency, supporting long-hour continuous operation.
Fitted with wheel-reduction drive axle for great heavy-load capacity, better durability under bumpy working conditions.
Flexible turning, strong climbing performance and compact size with outstanding trafficability, suitable for construction sites and rural yards.
Pilot control plus suspended shock-absorbing seat keeps operators productive with less fatigue.
Thick and wear-resistant bucket. Besides conventional earth shoveling, loading, unloading and transportation, it supports light excavation for rock and hard soil.
Multi-functional machine. By changing attachments, it can realize shoveling & loading, material grabbing, fork lifting, bulldozing and more.
Flexible customization available according to customer requirements, including bucket capacity, cab configuration and various attachments.
